JIS JIS KS91A 121 CAST IRON AIR VENT HEAD

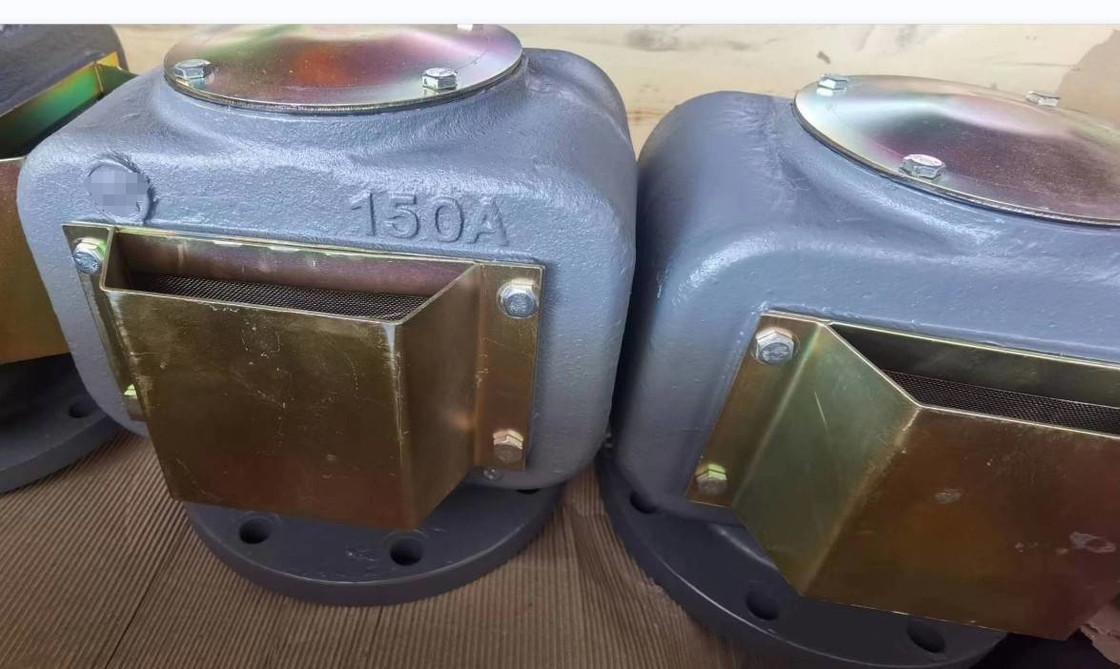

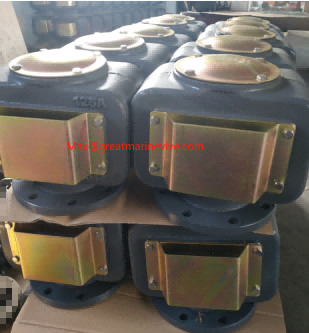

Large Image : JIS JIS KS91A 121 CAST IRON AIR VENT HEAD

Product Details:

Contact Now

JIS JIS KS91A 121 CAST IRON AIR VENT HEAD

Description

JIS-KS91A-121 Marine Cast Iron Flange Air Vent Head 5K/10K

Technical Data:

Standard	Nominal Pressure	Nominal Diameter	Applicable Medium
JIS-KS91A-121	5K/10K	50~450	Oil.Gas

Material of Main Parts:

Item	Parts Name	Material	Code
1	Body	Cast Iron	FC200
2	Float	Stainless Steel	SS304
3	Guide Bolt	Stainless Steel	SS304
4	Gasket	Rubber	NBR
5	Cover	Steel/Stainless Steel	SS400/SS304

Main Data:

Size	IMPA CODE	H	A	D(5K)	D(10K)	Weight kgs
50A		175	179	130	155	7.80
65A		204	205	155	175	11.00
80A		244	237	180	185	15.00
100A		220	245	200	210	18.00
125A		250	270	235	250	24.00
150A		285	316	265	280	35.00
200A		365	394	320	330	57.00
250A		430	485	385	400	90.00
300A		530	550	430	445	121.00
350A		570	661	480	490	177.00
400A		640	703	540	560	220.00
450A		713	816	605	620	260.00

JIS JIS KS91A 121 CAST IRON AIR VENT HEAD 0
