Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings

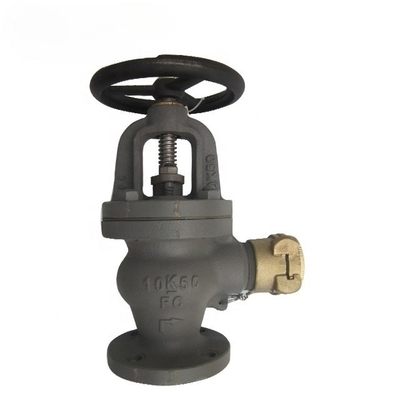

Large Image : Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings

Product Details:

Contact Now

Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings

Description

Marine Cast Iron Angle Hose Valve JS F7333 5K/10K:

IMPA751734

IMPA751735

IMPA751736

IMPA

Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings 0

Design Standard: JIS F7333

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: 5K: Body- 1.05Mpa, Seat-0.77Mpa, 10K: body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -5K or 10K

Main Material:

Body & Bonnet: Cast Iron (FC200)

Seat & Disc: Bronze (BC6) or Stainless Steel (SCS2)

Stem: Brass (C3771BD) or Stainless Steel (SUS403)

Packing Gland: Bronze (BC6) or Stainless Steel (SCS2)

Coupling: Bronze or Brass

Handwheel: Cast Iron (FC200)

Main Size List(mm):

IMPA CODE	DN	k	d	L	D	C	n-d	t	H	D2	D3	L1	L2	Weight(kg)
751734	50	5	50	155	130	105	4-15	16	255	160	M64X2	100	110	12.8
751736	50	10	50	170	155	120	4-19	20	255	160	M64X2	120	115	17
751737	65	10	65	185	175	140	4-19	22	270	200	M80X2	130	125	24.3

Marine Cast Iron Angle Hose Valve JS F7333B 5K/10K with Brass Couplings 1

The description/sizes may be different with goods, please check with us when order.

CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
