B2026 BRONZE GATE VALVE

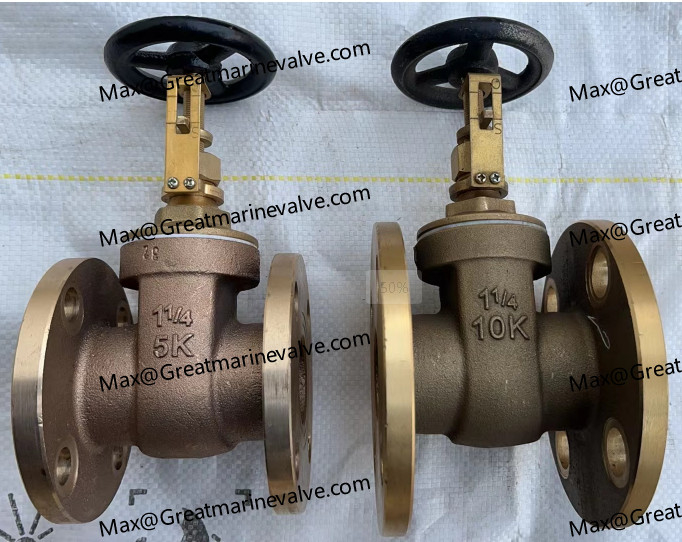

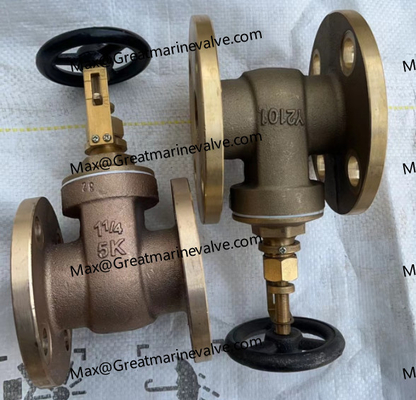

JIS B2026 10K Marine Cast Bronze 150LBS Gate Valve

Bronze/Brass Gate Valve JIS B2026 10K is used to replace marine gate valve JIS F7368 to control the opening and closing of the pipe system, because it has the same function, but lighter and cheaper.

Technical Specification:

1.Design & Manufacturing Standard: JIS B2026

2.Inspection & Test Standard: JIS F7400

3. Connection Type: Flange

4.Flange Standard: JIS B2220 FF 10K

5.Hydraulic Pressure Test: Body-2.1Mpa, Seat-1.54Mpa

6. Max Working Pressure: 1.0Mpa for oil, pulsation water, 0.4Mpa for steam of 205℃ or less, 1.4Mpa for non-shock water of 120℃ or less.

7. Warranty: 12months

Main Material:

1-Body: Bronze / Brass

2-Disc: Bronze / Brass

3-Stem: Brass

4-Bonnet: Bronze / Brass

5-Handwheel: Cast Iron

Main Data for Joining(mm):
