JIS F7421 20K Forged Steel Globe Valve 20K6 20K10 20K15 20K20 20K25 S Type,U Type F Type

JIS F7421 20K Forged Steel Globe Valve 20K6 20K10 20K15 20K20 20K25 S Type,U Type F Type

JIS F7422 20K Forged Steel ANGLE Globe Valve 20K6 20K10 20K15 20K20 20K25 S Type,U Type F Type

JIS F7336 30K Forged Steel Globe Valve 30K6 30K10 30K15 30K20 30K25 S Type,U Type F Type

JIS F7337 30K Forged Steel ANGLE Globe Valve 30K6 30K10 30K15 30K20 30K25 S Type,U Type F Type

JIS F7329 40K Forged Steel Globe Valve 40K6 40K10 40K15 40K20 40K25 S Type,U Type F Type

JIS F7330 40K Forged Steel ANGLE Globe Valve 40K6 40K10 40K15 40K20 40K25 S Type,U Type F Type

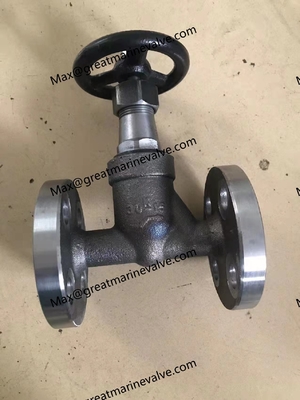

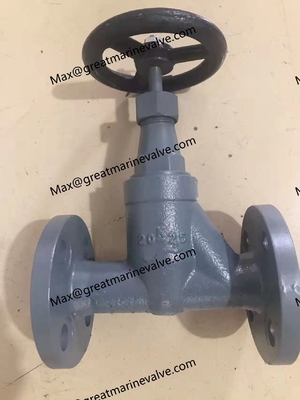

JIS F7421 Forged Steel Globe Valve 20K JIS F7421 Marine Forged Steel Globe Valve.

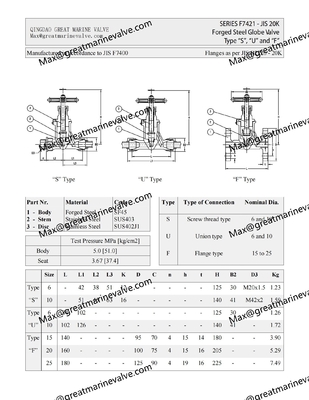

JIS Forged Steel Globe Valve F7421 20K15-25 S Type,U Type&F Type

The valve is used for shipbuilding, ship repair and oil platform with high quality.Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.

2. Material

(1) - Body: forged steel

(2) - Disc: stainless steel

(3) - Stem: stainless steel

3. Nominal Diameter ＆ Pressure

Diameter: Type “S”:6 & 10

Type “U”:6 & 10

Type “F”:15~25

Pressure: 20K
