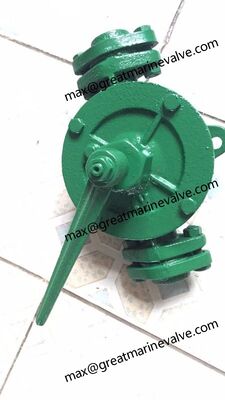

Marine Semi-Rotary Hand Wing Pump (K / YL Series)

English Name: Semi-Rotary Hand Pump / Hand Operated Wing Pump IMPA Codes:

• IMPA 614014 (15mm)
• IMPA 614015 (20mm)
• IMPA 614016 (25mm)
• IMPA 614017 (32mm)
• IMPA 614018 (40mm)
• IMPA 614019 (50mm)

Marine Semi-Rotary Hand Wing Pump | K YL Series Manual Hand Pump IMPA 614014~614019

Marine cast iron semi rotary hand wing pump, manually operated for ship transferring water, fuel oil, lube oil. IMPA 614014 IMPA 614015 (20mm),IMPA 614016 (25mm),IMPA 614017 (32mm),IMPA 614018 (40mm) ,IMPA 614019 (50mm) available, self-priming, compact structure for vessel onboard use.

Our Marine Semi-Rotary Hand Wing Pump (K / YL Series), also known as hand operated wing pump, is widely installed on ships, vessels and offshore equipment for manual liquid transfer. This positive displacement hand pump is designed for emergency and daily pumping without power supply.

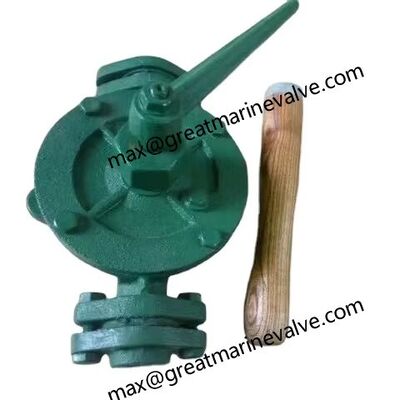

Constructed from robust cast iron with precision casting, the pump body features anti-corrosion coating to adapt to harsh marine salt spray environment. Equipped with a detachable solid wooden handle for comfortable manual operation. The semi-rotary double-wing mechanism delivers stable flow and reliable self-priming performance.

Max@greatmarinevalve.com www.greatmarinevalve.com

Applications

Transfer clean non-corrosive liquids: fresh water, seawater, fuel oil, diesel, lube oil, kerosene, antifreeze liquid. Suitable for ship bilge pumping, oil tank draining, deck liquid transfer and backup emergency pumping system.

Key Features

✅ Fully manual operation, no electricity or compressed air required, ideal for ship emergency backup ✅ Cast iron pump body, heavy-duty, shock resistant for rough marine working conditions ✅ Self-priming design, easy priming and smooth liquid delivery ✅ Compact and simple structure, quick disassembly for inspection & maintenance ✅ Wide size range, full IMPA spare part codes from 614014 to 614019 ✅ Long service life, replaceable wearing parts, low maintenance cost

Technical Specifications

• Model: K0, K1, K2, K3, K5, K7 / YL0, YL1, YL2, YL3, YL5, YL7
• Material: Cast Iron (optional brass / stainless steel internal parts)
• Connection: Flange or threaded connection
• Medium Temperature: ≤60℃
• Suction lift: Up to 7 meters
• Discharge head: Max 20 meters
• Flow rate: 10 ~ 100 L/min (depends on different sizes)
• IMPA Item No.: 614014,614015,614016,614017,614018,614019

Package & Supply

Each pump is packed in wooden case or carton. OEM & custom marking service available. Fast delivery for marine spare parts orders.Note: Not applicable for liquid containing solid particles, fibers or strong corrosive chemicals.
