DIN CAST IRON GLOBE VALVE,DIN CAST IRON GLOBE VALVE & GLOBE CHECK VALVE,PN10/PN16 Face to face as per DIN3202 F1

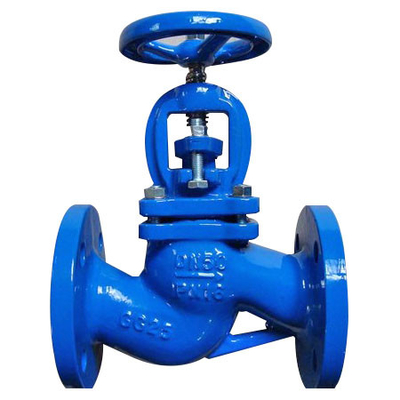

Large Image : DIN CAST IRON GLOBE VALVE,DIN CAST IRON GLOBE VALVE & GLOBE CHECK VALVE,PN10/PN16 Face to face as per DIN3202 F1

Product Details:

Place of Origin:	CHINA
Brand Name:	GMV/OEM
Certification:	ABS.BV.CCS.DNV.
Model Number:	DN15 TO DN300

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	CARTO/Plywood Box
Delivery Time:	1-5 WORKING DAYS
Payment Terms:	T/T, D/P, D/A, Western Union, L/C
Supply Ability:	1000 PCS/PER WEEK

Contact Now

DIN CAST IRON GLOBE VALVE,DIN CAST IRON GLOBE VALVE & GLOBE CHECK VALVE,PN10/PN16 Face to face as per DIN3202 F1

Description

CAST IRON:	BULE, GREY

DIN CAST IRON GLOBE VALVE & GLOBE CHECK VALVE,PN10/PN16
GREAT MARINE Face to face as per DIN3202 F1
Flange as per DIN2533 PN10/PN16
Medium: Water, Steam, Oil
Working Temperature: ≤ 200℃

IMPA755231 755232 755233 755234 755235 755236 755237 755238 755239 755240 755241 755242 755243 755244 755245

DIN CAST IRON GLOBE VALVE,DIN CAST IRON GLOBE VALVE & GLOBE CHECK VALVE,PN10/PN16 Face to face as per DIN3202 F1 0

No.	Component	Material
1	Body	Cast Iron
2	Seat ring	Staninless steel
3	Disc	Staninless steel
4	Stem	Staninless steel

Size	L	D	D1	D2	b	f	Z-Φd	Do	H
15	130	95	65	47	14	2	4-14	80	170
20	150	105	75	58	16	2	4-14	80	170
25	160	115	85	68	16	2	4-14	100	190
32	180	140	100	78	18	2	4-18	120	210
40	200	150	110	88	18	3	4-18	120	220
50	230	165	125	102	20	3	4-18	140	235
65	290	185	145	122	20	3	4-18	160	275
80	310	200	160	138	22	3	8-18	240	335
100	350	220	180	158	24	3	8-18	240	375
125	400	250	210	188	26	3	8-18	280	425
150	480	285	240	212	26	3	8-23	320	490
200	600	340	295	268	30	3	12-23	360	620
