DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16

DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16
DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16

Large Image :  DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16

Product Details:
Place of Origin: CHINA
Brand Name: GMV/OEM
Certification: ABS.BV.CCS.DNV.
Model Number: DN15 TO DN300
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: CARTO/Plywood Box
Delivery Time: 1-5 WORKING DAYS
Payment Terms: T/T, D/P, D/A, Western Union, L/C
Supply Ability: 1000 PCS/PER WEEK
Contact Now

DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16

Description
CAST IRON: BULE, GREY

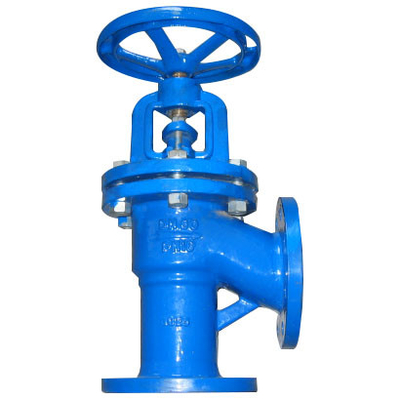

DIN CAST IRON ANGLE VALVE & GLOBE CHECK VALVE,PN10/PN16
GREAT MARINE Face to face as per DIN3202 F1
Flange as per DIN2533 PN10/PN16
Medium: Water, Steam, Oil
Working Temperature: ≤ 200℃

IMPA755246 755247 755248 755249 755250 755251 755252 755253 755254 755255 755256 755258 755259 755260

IMPA755251 755252 755253 755254 755255 755256 755258 755259 755260

IMPA755256 755258 755259 755260



No. Component Material
1 Body Cast Iron
2 Seat ring Staninless steel
3 Disc Staninless steel
4 Stem Staninless steel

Size L D D1 D2 b f Z-Φd Do H
15 130 95 65 47 14 2 4-14 80 170
20 150 105 75 58 16 2 4-14 80 170
25 160 115 85 68 16 2 4-14 100 190
32 180 140 100 78 18 2 4-18 120 210
40 200 150 110 88 18 3 4-18 120 220
50 230 165 125 102 20 3 4-18 140 235
65 290 185 145 122 20 3 4-18 160 275
80 310 200 160 138 22 3 8-18 240 335
100 350 220 180 158 24 3 8-18 240 375
125 400 250 210 188 26 3 8-18 280 425
150 480 285 240 212 26 3 8-23 320 490
200 600 340 295 268 30 3 12-23 360 620



DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16 0DIN Cast Iron Flanged Globe Valve PN6/10/16/25/40/64 Face to face as per DIN3202F1 Flange as per DIN2533 PN10/PN16 1
No. Component Material
1 Body Cast Iron
2 Seat ring Staninless steel
3 Disc Staninless steel
4 Stem Staninless steel

Size L D D1 D2 b f Z-Φd Do H
15 90 95 65 47 14 2 4-14 80 260
20 95 105 75 58 16 2 4-14 80 280
25 100 115 85 68 16 2 4-14 100 290
32 105 140 100 78 18 2 4-18 120 315
40 115 150 110 88 18 3 4-18 120 345
50 125 165 125 102 20 3 4-18 140 370
65 145 185 145 122 20 3 4-18 160 415
80 155 200 160 138 22 3 8-18 240 480
100 175 220 180 158 24 3 8-18 240 545
125 200 250 210 188 26 3 8-18 280 620
150 225 285 240 212 26 3 8-23 320 700
200 275 340 295 268 30 3 12-23 360 845
250 325 405 355 320 32 3 12-27 400 1025
