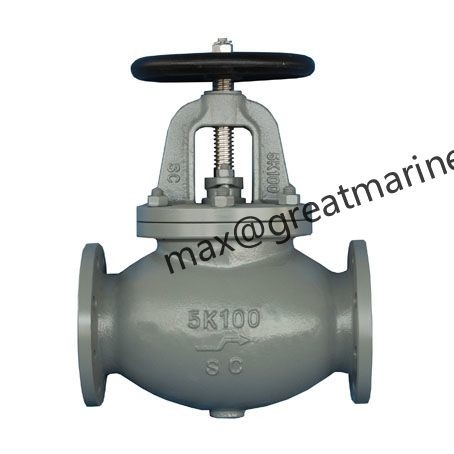

JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311

JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311
JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311

Large Image :  JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311

Product Details:
Contact Now

JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311

Description

Cast steel mairne Valve JIS F7311 from Great marine valve with ABS,BV, CCS, DNV, Marine Class certificate,

China Marine Cast Steel Globe Valve JIS F7311 5K:

JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311 0

Design Standard: JIS F7311-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

Main Material:





Body: Cast Steel (SC480)

Bonnet: Cast Steel (SC480)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

Main Size List(mm):



Size L D C No of Bolt Hole h t H D2
50 210 130 105 4 15 16 270 160
65 250 155 130 4 15 18 300 180
80 280 180 145 4 19 18 310 180
100 340 200 165 8 19 20 360 224
125 410 235 200 8 19 20 390 250
150 480 265 230 8 19 22 445 280
200 570 320 280 8 23 24 530 315
250 740 385 345 12 23 26 650 355
300 840 430 390 12 23 28 740 400
350 840 480 435 12 25 30 840 500
400 1050 540 495 16 25 30 940 630



The description/sizes may be different with goods, please check with us when order.

JIS CAST STEEL MARINE GLOBE VALVE 5K JIS F7311 1
