Marine Cast Iron Gate Valve JIS F7363 5K Drawing

China Marine Cast Iron Gate Valve JIS F7363 5K:

Marine Gate Valve is used to open and close the fuel oil piping, lubricating, water, steam piping at temperatures 120 degree centigrade or less.

Design Standard: JIS F7363-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure:

DN400 and below: Body- 1.05Mpa, Seat-0.77Mpa (for not over DN400).

DN450~DN600: Body-0.75Mpa, Seat-0.55Mpa

Flange size as per JIS B2220 - 5K

Main Material:

Body: FC200/HT200 (Cast Iron)

Bonnet: FC200/HT200 (Cast Iron)

Disc: Bronze (BC6) or SCS2 (2Cr13)

Seat: Bronze (BC6) or SCS2 (2Cr13)

Stem: Brass (C3771BD) or SUS403

Gasket: non-asbestos

Packing Gland: Bronze (BC6)/Brass/Carbon Steel

Handwheel: FC200/HT200 (Cast Iron)

Main Size List(mm):

Size	L	Flange diam. (D)	Pitch (C)	No of Bolt Hole	h	t	H	D2
50	180	130	105	4	15	16	285	125
65	190	155	130	4	15	18	330	140
80	200	180	145	4	19	18	380	160
100	230	200	165	8	19	20	430	180
125	250	235	200	8	19	20	495	200
150	270	265	230	8	19	22	560	224
200	290	320	280	8	23	24	680	280
250	330	385	345	12	23	26	800	355
300	370	430	390	12	23	28	920	400
350	410	480	435	12	25	30	1000	450
400	470	540	495	16	25	30	1100	500
450	500	605	555	16	25	30	1420	560

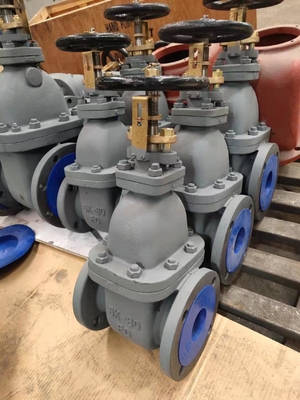

Marine Cast Iron Gate Valve JIS F7363 5K DN50--DN350 1

The description/sizes may be different with goods, please check with us when order.

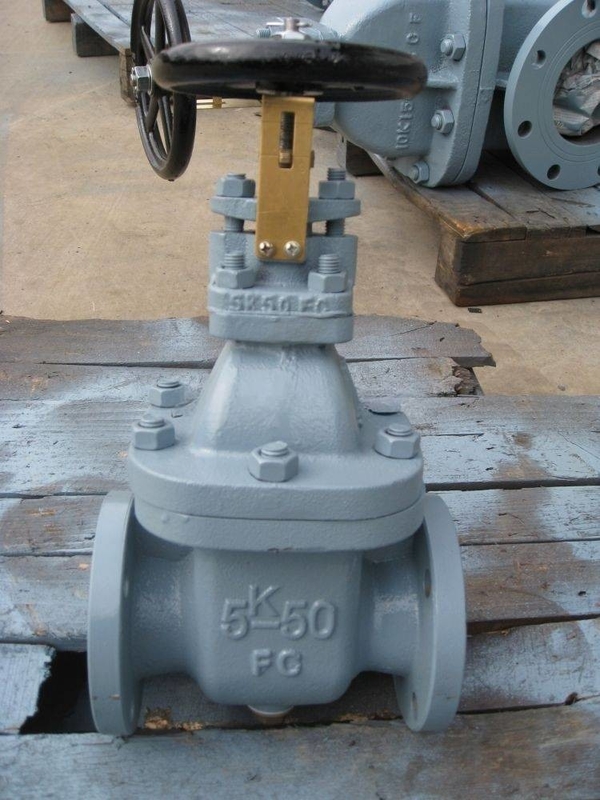

Marine Cast Iron Gate Valve JIS F7363 5K DN50--DN350
