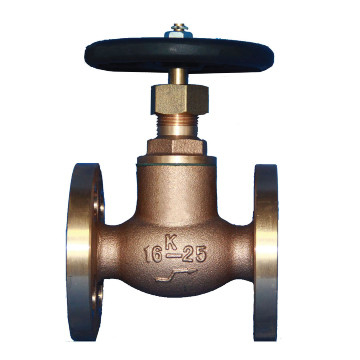

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145

Description

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145

Qingdao china Marine Bronze Globe Valve JIS F7303 16K:

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145 0

Design Standard: JIS F7303-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-3.3Mpa, Seat-2.42Mpa

Flange Size as per JIS B2220-16K

Main Material:





1-Body: Bronze (BC6)

2-Disc:Bronze (BC6)

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6)

5-Handwheel: Cast Iron (FC200)

Main Size List(mm):



IMPA Code Size L D C No of Bolt Hole h t H D2
750141 15 110 95 70 4 15 12 130 80
750142 20 120 100 75 4 15 14 140 100
750143 25 130 125 90 4 19 14 160 125
750144 32 160 135 100 4 19 16 170 125
750145 40 180 140 105 4 19 16 190 140

Marine Bronze Globe Valve JIS F7303 16K IMPA750141 IMPA750142 IMPA750143 IMPA750144 IMPA750145 1

The description/sizes may be different with goods, please check with us when order.
