Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Large Image : Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Product Details:

Contact Now

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155

Description

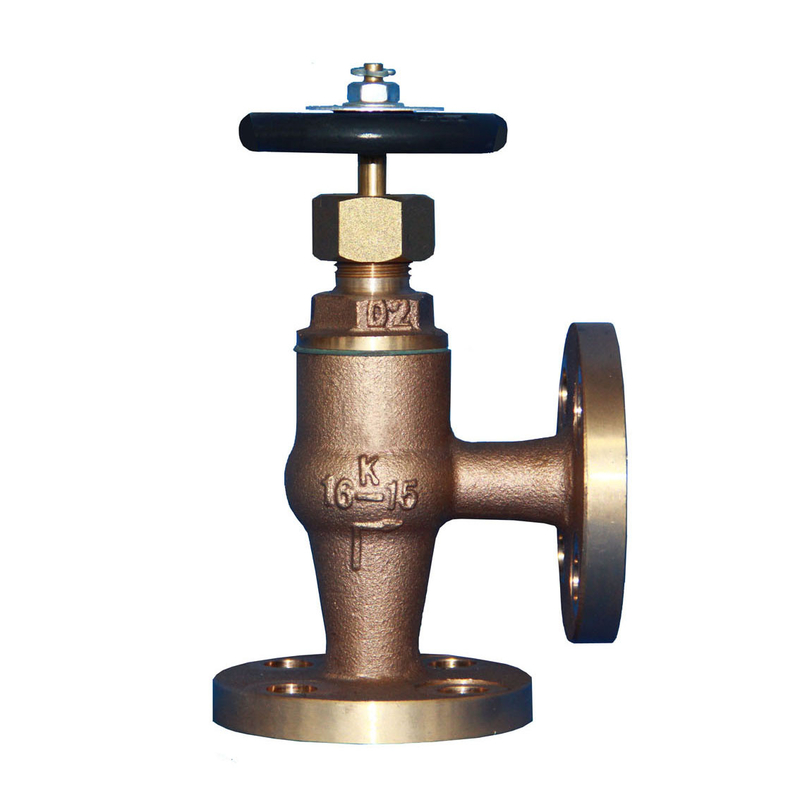

QINGDAO China Marine Bronze Angle Valve JIS F7304 16K:

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155 0

Design Standard: JIS F7304-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 3.3Mpa, Seat-2.42Mpa

Flange size as per JIS B2220 - 16K

Main Material:

1- Body: Bronze (BC6) / Brass

2- Disc: Bronze (BC6) / Brass

3- Stem: Brass (C3771BD)

4- Bonnet: Bronze (BC6) / Brass

5-Handwheel: Cast Iron (FC200)

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155 1

Marine Bronze Angle Valve JIS F7304 16K IMPA750151 IMPA750152 IMPA750153 IMPA750154 IMPA750155 2

Main Size List(mm):

IMPA750151
IMPA750152
IMPA750153
IMPA750154
IMPA750155

IMPA CODE	Size	L	D	C	No. of Bolt	h	t	H	D2
750151	15	70	95	70	4	15	12	120	80
750152	20	75	100	75	4	15	14	125	100
750153	25	85	125	90	4	15	14	140	125
750154	32	95	135	100	4	15	16	145	125
750155	40	100	140	105	4	19	16	160	140
