Product Details:
|
Design Standard: JIS F7351-1996
Test Standard: JIS F7400-1996
Test Pressure: Body-1.05Mpa, Seat-0.77Mpa
Flange Size as per JIS F2220-5K
*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet

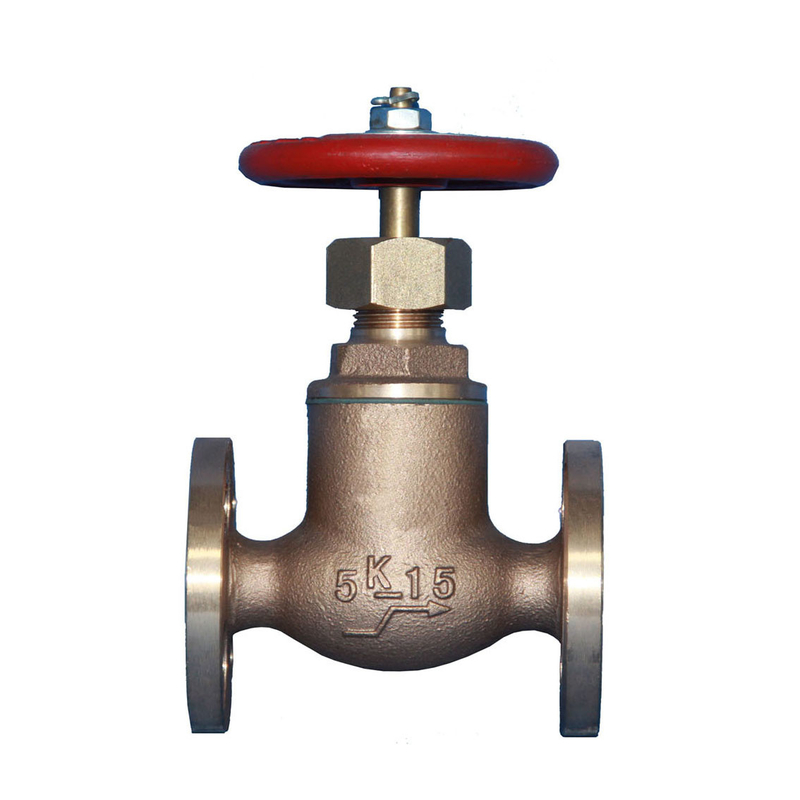

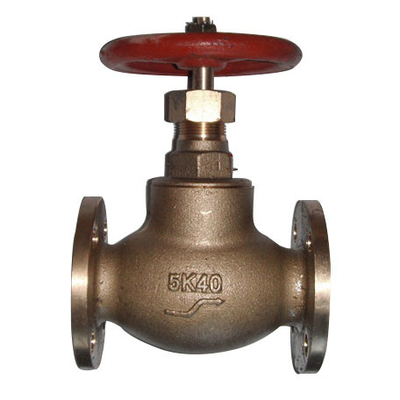

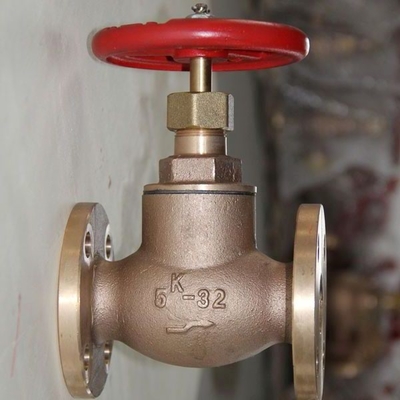

*Marine Bronze Screw Down Check Globe Valve also can be called as marine bronze SDNR Globe valve or SDNR valve, globe check valve, stop check valve.
1-Body: Bronze (BC6)
2-Disc:Bronze (BC6)
3-Stem: Brass (C3771BD)
4-Bonnet:Bronze (BC6)
5-Handwheel: Cast Iron (FC200)
| IMPA Code | Size | Face to Face (L) | Flange diam. (D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 |
| 751051 | 15 | 100 | 80 | 60 | 4 | 12 | 9 | 130 | 80 |
| 751052 | 20 | 110 | 85 | 65 | 4 | 12 | 10 | 140 | 100 |
| 751053 | 25 | 120 | 95 | 75 | 4 | 12 | 10 | 160 | 125 |
| 751054 | 32 | 140 | 115 | 90 | 4 | 15 | 12 | 170 | 125 |
| 751055 | 40 | 160 | 120 | 95 | 4 | 15 | 12 | 190 | 140 |
| 751056 | 50 | 210 | 130 | 105 | 4 | 15 | 14 | 235 | 140 |
| 751057 | 65 | 250 | 155 | 130 | 4 | 15 | 14 | 260 | 160 |
The description/sizes may be different with goods, please check with us when order.
