JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding

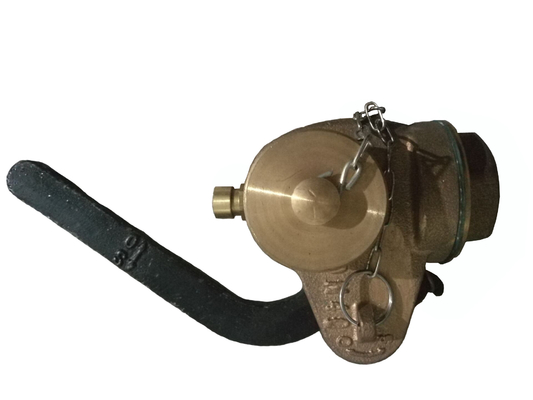

Large Image : JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding

Product Details:

Brand Name:	OEM
Certification:	ABS,CCS,DNV,BV LR
Model Number:	5K40 5K50 5K65

Contact Now

JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding

Description

JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE

JIS F 3019 Self-closing Gate Valve Heads for Sounding Pipe

China Marine Bronze Self-Closing Gate Valve Head for Sounding Pipe JIS F3019:

JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding 0

Design Standard: JIS F3019-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-0.3Mpa, Seat-0.2Mpa

Main Material:

1-Body: Bronze (BC6)

2-Bonnet:Bronze (BC6)

3-Disc: Bronze (BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR

6-Lever: Cast Iron

Main Size List(mm):

Size	d	d4	H1	L
40	G1-1/2	G1-1/2	54	160
50	G2	G2	60	160

JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding 2

JIS F3019 SELF-CLOSING GATE VALVE HEADS FOR SOUNDING PIPE JIS F 3019 Self-closing Gate Valve Heads for Sounding 3

The description/sizes may be different with goods, please check with us when order.
